ams OSRAM OSTUNE® E3030 KW DSLP31.CC 140mA LEDs

ams OSRAM OSTUNE^® E3030 KW DSLP31.CC 140mA LEDs are automotive-qualified LEDs that are specifically designed for automotive interior high-quality white applications. These LEDs offer a color temperature range from 2700k (warm white) to 6500k (cold white) at a superior Color Rendering Index (CRI) level The OSTUNE^® E3030 KW DSLP31.CC LEDs offer class 3B corrosion robustness and are AEC-Q102 qualified. These LEDs are ideally used in automotive interior illuminations.

Features

140mA forward current (I_f)
3.2V forward voltage (V_f)
2700k to 6500k color temperature
Class 3B corrosion robustness
-40°C to 110°C operating temperature range
Color chromaticity:
- Cx = 0.4 and Cy = 0.38 according to CIE 1931 (white)

Square flat lens shape
2kV ESD according to ANSI/ESDA/JEDEC JS-001 (HBM, class 2)
3mm x 3mm x 0.65mm (L x W x H) dimensions
AEC-Q102 qualified
White SMT package and color diffused silicone resin

Applications

Interior illuminations

ams OSRAM OSTUNE® E3030 KW DSLP31.CC 140mA LEDs

Features

Applications

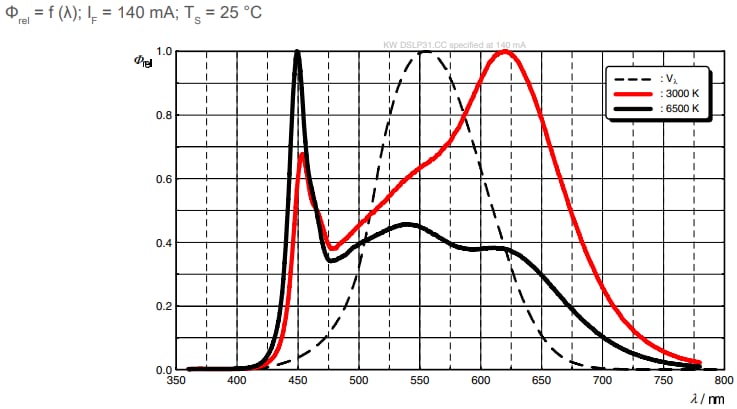

Relative Spectral Emission

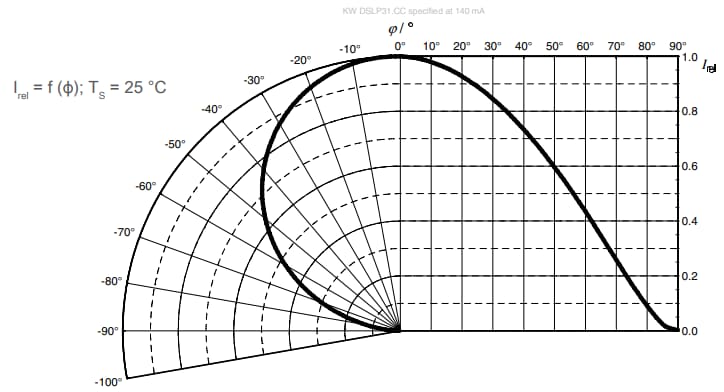

Radiation Characteristics

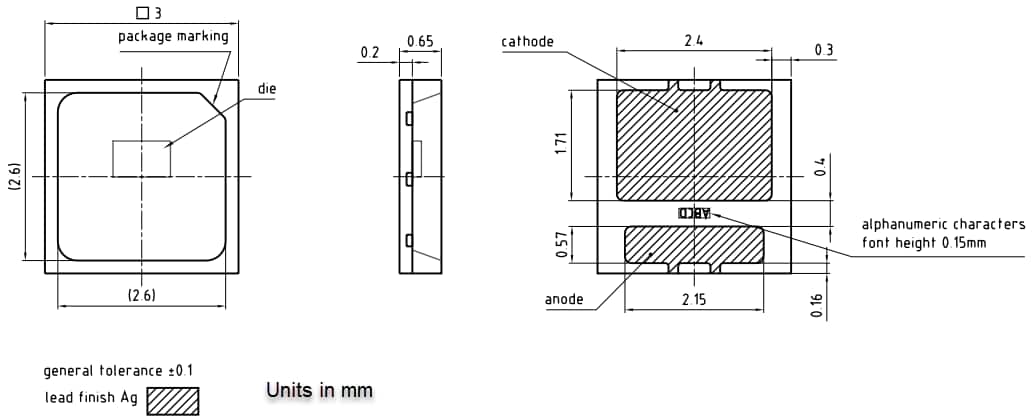

Mechanical Drawing
