ams OSRAM OSLON® UV 6060 LED

ams OSRAM OSLON® UV 6060 is designed for the highest germicidal effectiveness in a compact and robust package. The 100mW 265nm UV 6060 features high efficiency in a high power class for the fast and efficient treatment of pathogens. The ams OSRAM OSLON UV 6060 facilitates flexible and fast switchable designs with space-optimized integration and direct irradiation.

Features

100mW typical optical output
265nm peak Wavelength
5.7% typical wall plug efficiency
150° typical radiation
ROHS-compliant and ESD protected

Flip chip technology in a 6060 ceramic package with UV-C stable lens
UL certified
Passed dedicated ozone detection test (REQ-20210015)

Applications

Horticulture treatment
Sensing
UV-C treatment

Videos

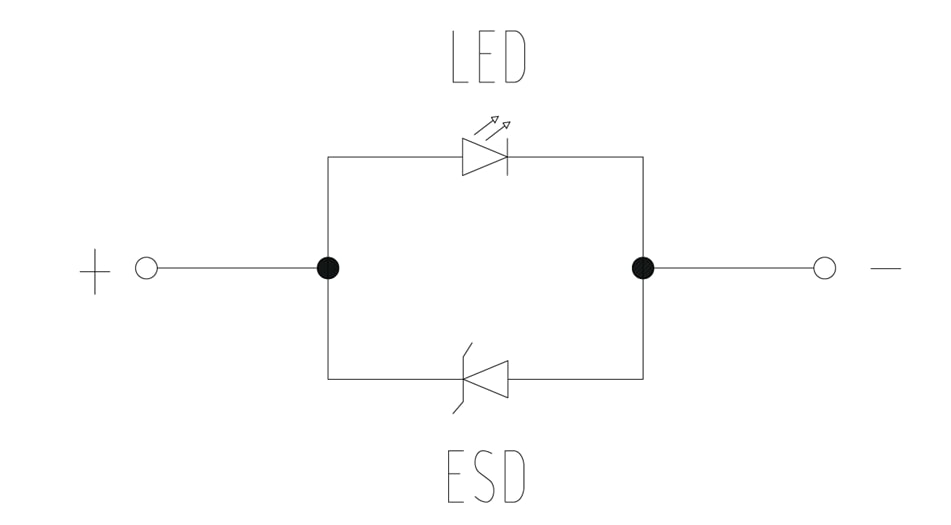

Electrical Internal Circuit

Application Circuit Diagram - ams OSRAM OSLON® UV 6060 LED
