ams OSRAM OSLON® Square GH CSSRM5.24 Hyper Red LEDs

ams OSRAM OSLON® Square GH CSSRM5.24 Hyper Red LEDs are optimized for horticulture applications. The high-power GH CSSRM5.24 LEDs provide excellent reliability, a long lifetime, and low thermal resistance in a compact footprint.

The ams OSRAM OSLON® Square GH CSSRM5.24 Hyper Red LEDs feature an ultra-compact 3.0mm x 3.0mm footprint ideal for high-density arrays.

Features

3.0mm x 3.0mm SMD ceramic package with a silicon lens
120° radiation
Very low thermal resistance
Superior robustness for a long lifetime
100mA to 1400mA forward current (I_F)
1500mA maximum surge current (I_FS)
660nm peak wavelength (λ_peak)
646nm to 666nm centroid wavelength; 657nm typical (λ_centroid)
640nm dominant wavelength (λ_dom)
25nm spectral bandwidth at 50% I_rel,max(∆λ)
120° viewing angle at 50% I_V (2φ)
1.80V to 2.20V forward voltage; 2.00V typical (V_F)

Corrosion robustness class: 3B
ESD: 8kV according to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B)
Radiant flux: 1064mW typical @ 700mA; 538mW typical @ 350mA
Radiant efficiency: 76% typical @ 700mA; 82% typical @ 350mA
Photosynthetic photon flux: 5.82μmol/s typical @ 700mA; 2.95μmol/s typical @ 350mA
Photon flux efficacy: 4.16μmol/J typical @ 700mA; 4.51μmol/J typical @ 350mA
-40°C to +125°C operating temperature range

Applications

Horticulture lighting
Architecture

Resources

Datasheet
LEDs for Horticultural Lighting Applications

ams OSRAM OSLON® Square GH CSSRM5.24 Hyper Red LEDs

Features

Applications

Resources

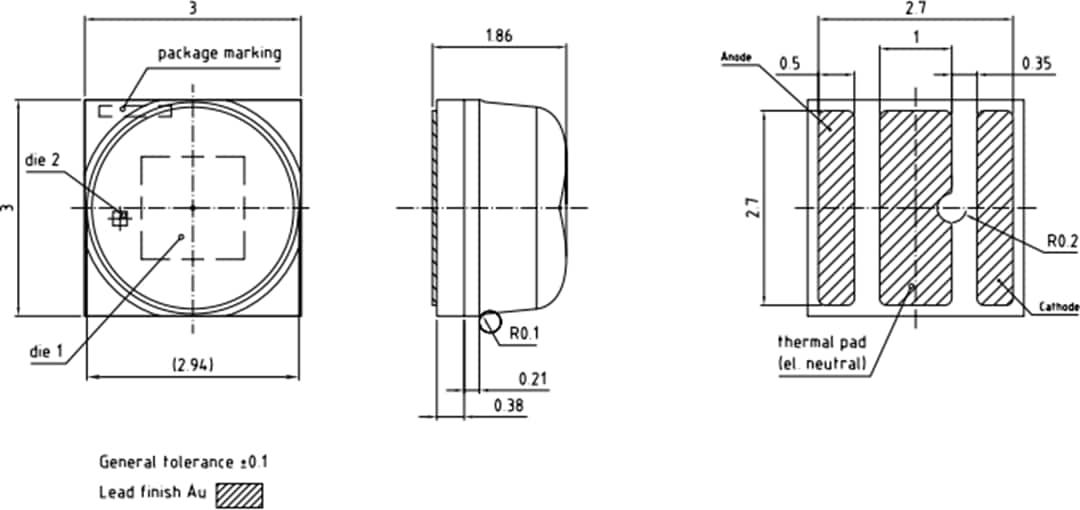

Package Outline
