ams OSRAM OSLON® Square GD CSBRM2.14 Deep Blue LED

ams OSRAM OSLON® Square GD CSBRM2.14 Deep Blue LED is optimized for horticulture. This LED features a unique and innovative radiation pattern designed to illuminate plants evenly for uniform growth while reducing the number of luminaires required. The high-power GD CSBRM2.14 LED provides excellent reliability, a long lifetime, and low thermal resistance in a compact footprint.

The ams OSRAM OSLON® Square GD CSBRM2.14 Deep Blue LED features an ultra-compact 3.0mm x 3.0mm footprint ideal for high-density arrays.

Features

3.0mm x 3.0mm SMD ceramic package with a silicon lens
150° radiation
Very low thermal resistance
Superior robustness for a long lifetime
100mA to 2000mA forward current (I_F)
2000mA maximum surge current (I_FS)
445nm peak wavelength (λ_peak)
440nm to 457nm dominant wavelength; 450nm typical (λ_dom)
20nm spectral bandwidth at 50% I_rel,max(∆λ)
140° viewing angle at 50% I_V (2φ)
2.80V to 3.20V forward voltage; 2.90V typical (V_F)
Corrosion robustness class: 3B

ESD: 8kV according to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B)
Radiant flux: 1490mW typical @ 700mA; 785mW typical @ 350mA
Radiant efficiency: 73% typical @ 700mA; 80% typical @ 350mA
Photosynthetic photon flux: 5.53μmol/s typical @ 700mA; 2.91μmol/s typical @ 350mA
Photon flux efficacy: 2.72μmol/J typical @ 700mA; 2.96μmol/J typical @ 350mA
-40°C to +125°C operating temperature range

Applications

Horticulture lighting
Architecture

Resources

Datasheet
LEDs for Horticultural Lighting Applications

ams OSRAM OSLON® Square GD CSBRM2.14 Deep Blue LED

Features

Applications

Resources

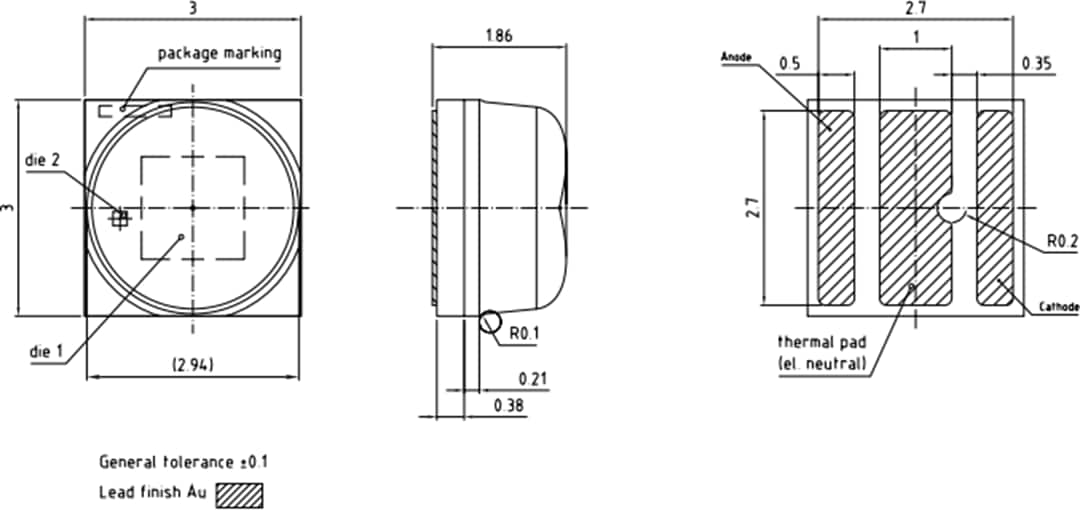

Package Outline
