Advantech MIC-711D AI Developer Kits

Advantech MIC-711D AI Developer Kits are designed with an open-frame carrier design with a thermal solution. These kits are based on NVIDIA® Jetson Orin™ NX or Nano processors. The MIC-711D AI developer kits support Allxon 24/7 remote monitoring and OTA deployment. These kits include a fan that measures 60mm x 60mm x 13mm and operates at a speed of 5400RPM, contributing to cooling and heat dissipation. The MIC-711D AI developer kits operate within the 9VDC to 36VDC input voltage range. These kits feature a form factor of 125mm x 125mm x 51mm and weigh 0.8kg.

Advantech MIC-711D AI Developer Kits

Features

  • Open-frame carrier design with thermal solution
  • Supports Allxon 24/7 remote monitoring and OTA deployment
  • Fan for effective cooling and heat dissipation
  • 9VDC to 36VDC input voltage range
  • 125mm x 125mm x 13mm dimensions
  • 0.8kg weight
  • BSP Jetpack version above 5.1

Specifications

  • MIC-711D-OX:
    • Support 1 x GbE, 2 x USB3.2 Gen1 (5Gbit/s)
    • Support 1 x mPCIe, 1 x M.2 3052, 1 x M.2 2280
    • Processor system (NVIDIA® Jetson Orin™ NX (up to 100 TOPS)):
      • CPU:
        • 16GB model; powered by 8-core NVIDIA Arm® Cortex® A78AE v8.2 64-bit CPU (2MB L2 + 4MB L3)
        • 8GB model; powered by 6-core NVIDIA Arm® Cortex® A78AE v8.2 64-bit CPU (1.5MB L2 + 4MB L3)
      • GPU:
        • 1024-core NVIDIA Ampere GPU with 32 Tensor Cores
      • Memory:
        • 16GB model; equipped with 16GB LPDDR5
        • 8GB model; equipped with 8GB LPDDR5
  • MIC-711D-ON:
    • Supports 1 x GbE, 2 x USB 3.2 Gen 1 (5Gbit/s)
    • Supports 1 x mPCIe, 1 x M.2 3052, 1 x M.2 2280
    • Processor system (NVIDIA® Jetson Orin™ Nano (up to 40 TOPS)):
      • CPU:
        • 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU (1.5MB L2 + 4MB L3)
      • GPU:
        • 8GB model; complimented by 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
        • 4GB model; complimented by 512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores
      • Memory:
        • 8GB model; equipped with 8GB LPDDR5
        • 4GB model; equipped with 4GB LPDDR5


Dimensions

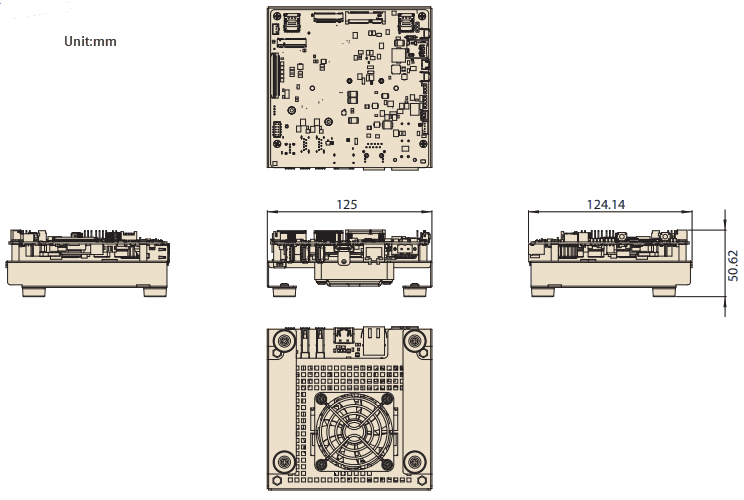

Mechanical Drawing - Advantech MIC-711D AI Developer Kits
