ADI Trinamic TMC5240x Stepper Motor Controller & Driver ICs

ADI Trinamic TMC5240x Stepper Motor Controller and Driver ICs are equipped with serial communication interfaces (SPI and UART) and extensive diagnosis capabilities. These smart high-performance ICs combine a flexible, jerk-optimized ramp generator with a stepper motor driver. This motor driver is based on the 256 microsteps built-in indexer and two fully integrated 36V, 3A (maximum) H-Bridges plus non-dissipative Integrated Current Sensing (ICS).

The TMC5240x controllers feature a 4.5V_DC to 36V_DC voltage range and abundant diagnostics protections such as short protection/OCP, thermal shutdown, and undervoltage lockout. These motor controllers and driver ICs provide functions to measure the driver temperature, estimate the motor temperature, and measure one external analog input. The TMC5240x ICs are available in a small TQFN32 5mm x 5mm package and a thermally optimized TSSOP38 9.7mm x 4.4mm with an exposed pad. Typical applications include textile, sewing machines, knitting machines, labs, factory automation, 3D printers, ID printers/card printers, ATMs, cash recyclers, bill validators, and cash machines.

Features

4.5V_DC to 36V_DC voltage range
230mΩ typical (TA = 25°C) low Rdson (HS + LS)
Current ratings per H-bridge (typical at 25°C):
- I_MAX = 5.0A (bridge peak current)
- I_RMS = 2.1A_RMS (3A sine wave peak)
Fully Integrated lossless Current Sensing (ICS)
EightPoint motion controller for minimum jerk
SPI and single-wire UART
Encoder interface and 2x reference switch Input
High resolution is 256 microsteps per full step
Flexible wavetable and phase shift to match motor
StealthChop2 silent motor operation
SpreadCycle highly dynamic motor control chopper

Jerk-free combination of StealthChop2 and SpreadCycle
StallGuard2 and StallGuard4 sensorless motor load detection
CoolStep current control for energy savings up to 75%
Passive braking and freewheeling mode
Motor phase temperature estimation
Chip temperature measurement
General-purpose analog input
Full protection and diagnostics
Overvoltage protection output
Compact 5mm x 5mm TQFN32 package or 9.7mm x 4.4mm TSSOP38

Applications

Textile, sewing machines, and knitting machines
Lab and factory automation
3D printers and ID printers/card printers
Liquid handling and medical applications
Office automation and paper handling

POS and massage chairs
ATM, cash recycler, bill validators, and cash machines
CCTV and security
Pumps and valve control
Heliostat and antenna positioning

ADI Trinamic TMC5240x Stepper Motor Controller & Driver ICs

Features

Applications

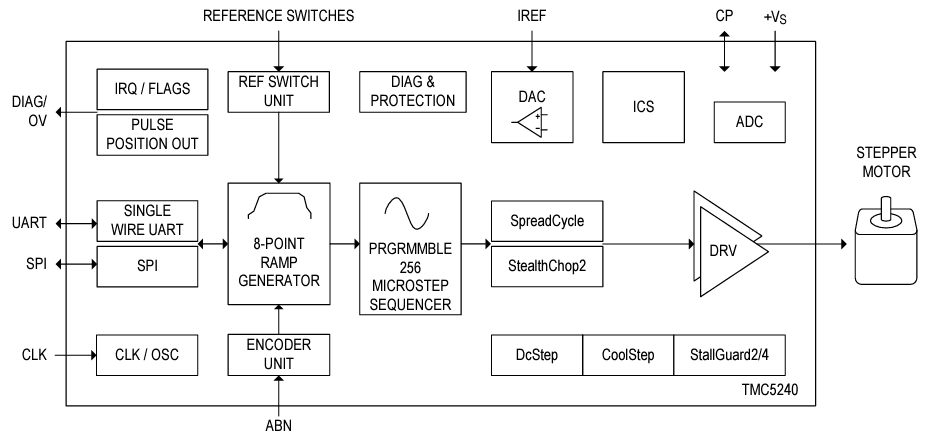

Block Diagram
