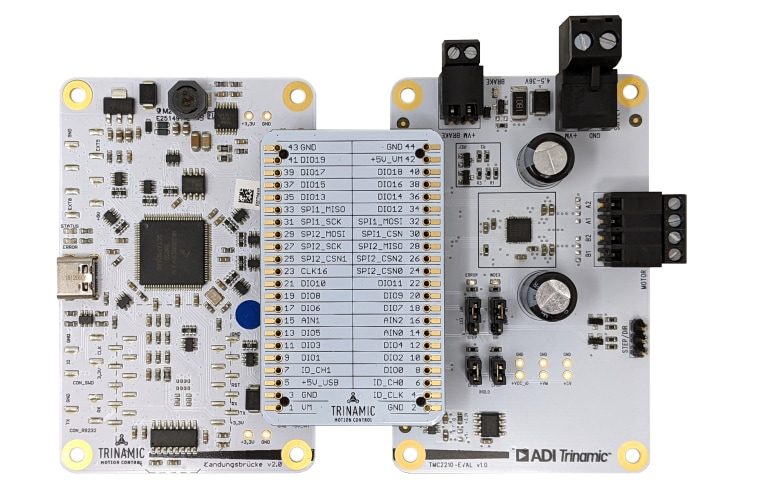

Analog Devices Inc. TMC2210-EVAL-KIT Eval Kit facilitates the evaluation of the TMC2210 stepper motor driver ICs. The TMC2210-EVAL-KIT includes an MCU board Landungsbruecke, an Eselsbruecke, and a TMC2210-EVAL driver board. The kit provides a quick and simple start while enabling full access to all registers, functionality, and diagnostics. All signals between MCU and TMC2210 are obtainable for diagnosis with probes on the bridge board. The TMC2210-EVAL board can be used with or without the Landungsbruecke MCU board.
The Analog Devices Inc. TMC2210-EVAL-KIT eval kit requires the easy-to-use TMCL-IDE graphical user interface. The GUI permits quick setup and supports the use of commands in direct mode, monitors real-time behavior visualized in graphs, and logs and stores data. All settings can be exported for the user’s firmware project.
