Acconeer XE125 Evaluation Board for XM125

Acconeer XE125 Evaluation Board for XM125 is a versatile tool designed to facilitate evaluating and debugging the XM125 interfaces. The XE125 has the ability to enable flashing of the XM125 via USB-UART or SW-DP. With an integrated A121 sensor, the XE125 board has an operating range of up to 2 meters and field of view of 180 degrees. The A121 sensor operates on a frequency band of 60GHz, a 4GHz bandwidth, and a minimum detectable signal of -105dBm.

Features

Evaluation and debugging of the XM125 Entry+ module’s interfaces
Flashing of the XM125 module via USB-UART or SW-DP
XM125 Entry+ module included in the XE125 evaluation board
Mounting of the XM125 module on the front side of the board
Various components and connectors are located on the back side of the board

Versatile tool for testing and optimizing designs
Comprehensive platform for developers
Streamlines the design process
Accelerates time-to-market
Suitable for both experienced developers and beginners

Applications

Presence detection
Distance measurement
Gesture recognition

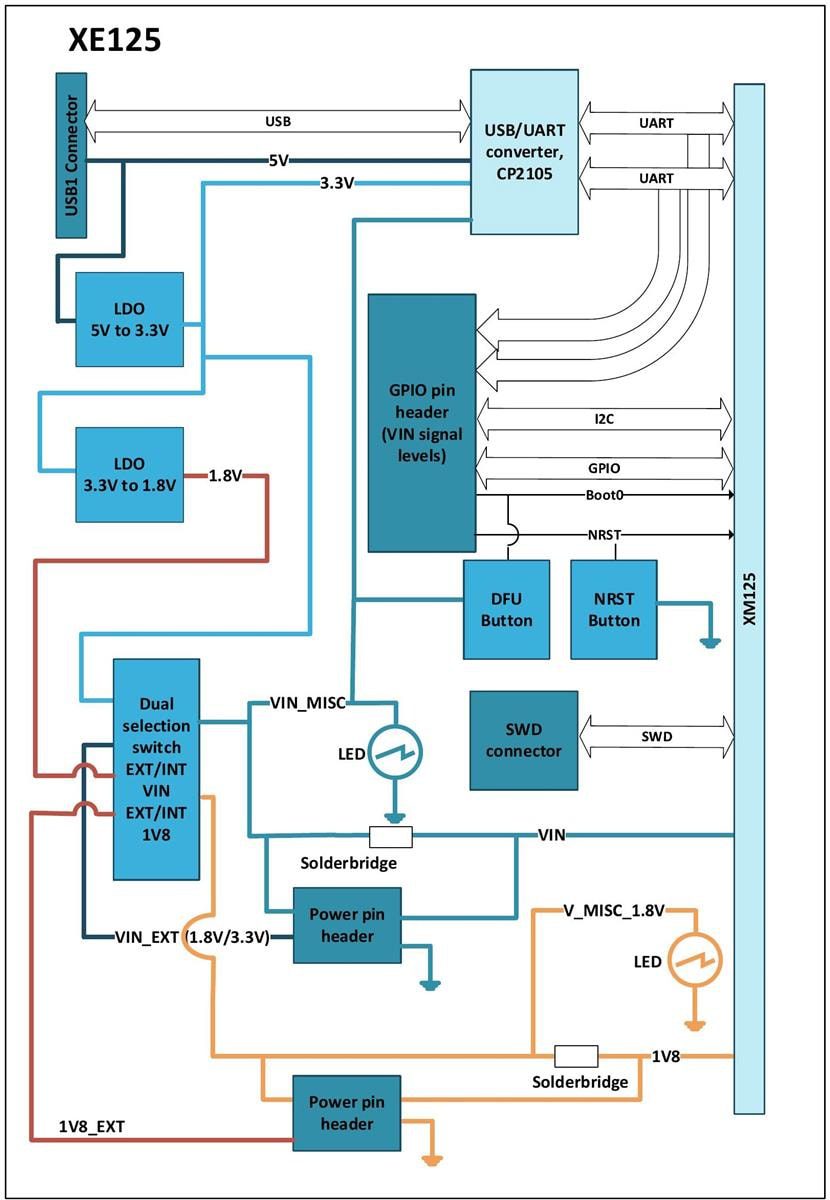

Block Diagram

Kit Contents

XE125 module board with an integrated A121 sensor
USB cable
2.4GHz antenna
