Abracon AETC LTE 4G/5G & Wi-Fi® 6E Whip Antennas

Abracon AETC LTE 4G/5G and Wi-Fi^® 6E Whip Antennas are low profile and offer up to 80% efficiency with peak gain. These antennas support the 617MHz to 7150MHz operating frequency range and SMA or RP-SMA connectors. The AETC whip antennas feature ≤1.67 Voltage Standing Wave Ratio (VSWR), 50Ω impedance, and Omni-directional radiation pattern (Azimuth). Typical applications include IoT, BLUETOOTH^®/ZigBee^®/single-band Wi-Fi/WLAN, 2.4GHz audio applications, and smart homes/smart buildings.

Features

Low profile
617MHz to 7150MHz operating frequency range
≤1.67 Voltage Standing Wave Ratio (VSWR)
SMA or RP-SMA connectors
Up to 80% efficiency (AETC01M02X, AETC1302X, and AETC2002X)
5dBi peak gain (AETC01M02X, AETC1302X, and AETC2002X)

AETC2303X:
- 3.0dBi peak gain
- High efficiency
- Easy installation with a built-in connector
- Customizable connector options

Specifications

50Ω impedance
Omni-directional radiation pattern (Azimuth)

Whip antenna type
ROHS complaint

Applications

Internet of Things (IoT) devices
BLUETOOTH/ZigBee/single-band Wi-Fi/WLAN
2.4GHz audio devices
BLUETOOTH AoA/AoD
Smart home and building

AETC2303X:
- Machine-to-Machine (M2M)
- 5G and Ultra Wideband(UWB)
- 4G/LTE and 2G/3G/4G radios
- Gateways and routers
- Security/remote monitoring

Abracon AETC LTE 4G/5G & Wi-Fi® 6E Whip Antennas

Features

Specifications

Applications

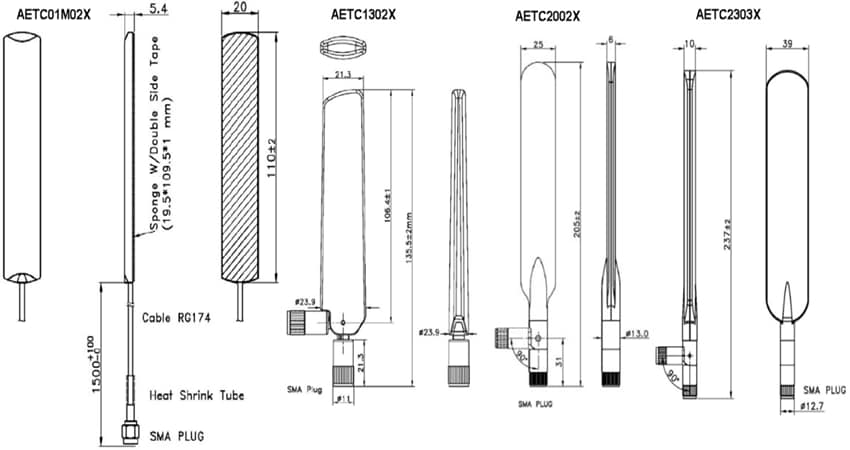

Dimension Diagram (mm)
