Abracon AANI-NI-0013 2.4GHz Stamped Metal Niche Antenna

Abracon AANI-NI-0013 2.4GHz Stamped Metal Niche Antenna is a cost-effective, low-profile (0.54mm) antenna offering high efficiency (76%) and low return loss (< -10.1dB). Abracon AANI-NI-0013 Stamped Metal Niche Antenna features an operating frequency of 2400MHz to 2500MHz, linear polarization, 3.2dBi peak gain, and 50Ω impedance. This antenna is ideal for various applications, including Wi-Fi®, BLUETOOTH®, IoT, machine-to-machine (M2M), wearables, wireless remote controls, and more.

Features

  • Low-profile antenna
  • Cost-effective
  • Low return loss
  • Robust performance even in solutions requiring potting/coating/over-mold
  • Based on Abracon patented technology
  • Highly efficient
  • Integration along PCB edge
  • 8mm x 4.85mm x 0.54mm dimensions

Applications

  • Wi-Fi/BLUETOOTH
  • IoT/M2M
  • Wearables
  • Wireless remote controls
  • Personal area networks (PAN)
  • Industrial/commercial equipment

Specifications

  • 2400MHz to 2500MHz operating frequency
  • < -10.1dB return loss
  • Linear polarization
  • 3.2dBi peak gain
  • > -1.2dB (76%) efficiency
  • 50Ω impedance

Dimensions (mm)

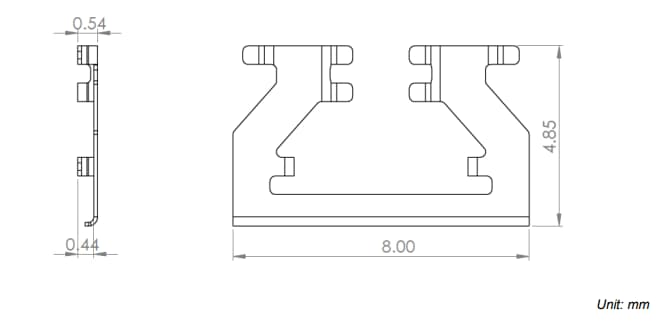

Mechanical Drawing - Abracon AANI-NI-0013 2.4GHz Stamped Metal Niche Antenna

Abracon AANI-NI-0013 2.4GHz Stamped Metal Niche Antenna
