ABLIC S-8473 Wireless Power Receiver Control IC

ABLIC S-8473 Wireless Power Receiver Control IC comes with a charge function for a small lithium-ion rechargeable battery. This wireless power IC is configured with a charge current control circuit, a V_BAT voltage detection circuit, and an Under-Voltage Lockout (UVLO) circuit. The S-8473 IC features 450mW power dissipation, 2.2V to 5V power supply voltage, 1.5V to 2V short-circuit detection voltage, and 3.6V to 4.45V recharge start voltage. This wireless power IC operates at -40°C to 85°C operating temperature range and is available in the SNT-8A package. The S-8473 IC is lead and halogen-free. Typical applications include devices for wireless power and small-sized wireless charge system.

Features

450mW power dissipation (when mounted on board)
2.2V to 5V power supply voltage range
Current consumption during charge operation: ISS1 = 250μA (typical)
1μA maximum V_BAT pin current consumption during power-down
High/low-temperature protection function
Status display function:
- During charge operation: Lighting
- During charge operation stop: Lights-out
- During error detection: Blinking

Charge function to a small lithium-ion rechargeable battery:
- Charge current: I_LIM = 33mA (typical)
- Precharge current: I_PRE = 3.3mA (typical)
- 1.5V to 2V short-circuit detection voltage range
- 3.6V to 4.45V recharge start voltage range
-40°C to 85°C operating temperature range
Available in the SNT-8A package
Lead and halogen-free

Applications

Devices for wireless power
Small-sized wireless charge system

ABLIC S-8473 Wireless Power Receiver Control IC

Features

Applications

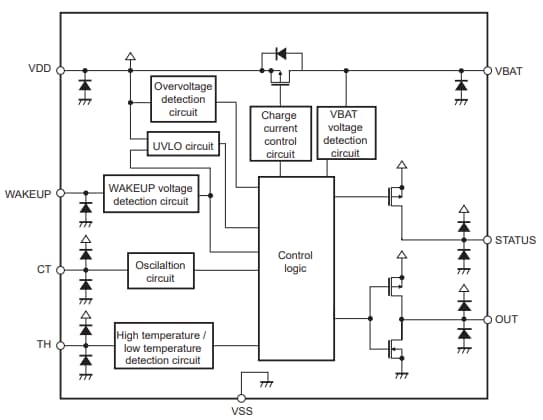

Block Diagram

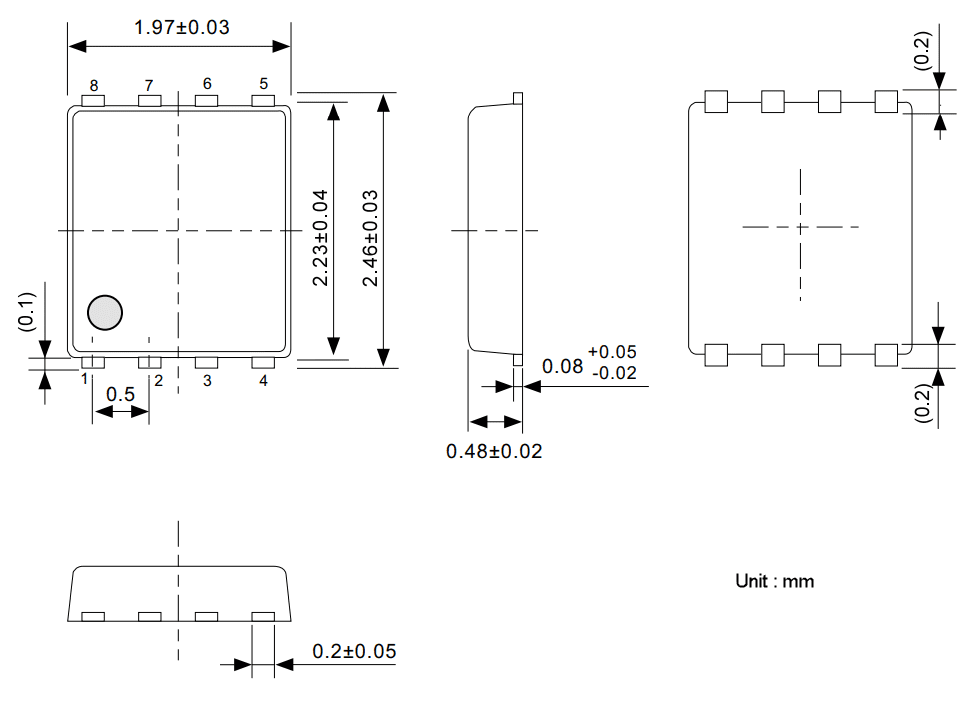

Mechanical Drawing
