ABLIC S-8471 Wireless Power Receiver Control IC

ABLIC S-8471 Wireless Power Receiver Control IC is configured with an overvoltage detection circuit, an ON/OFF circuit, and a high-temperature detection circuit. This wireless power IC features 400mW power dissipation, 50μA maximum current consumption (during operation), and ±2% overvoltage detection accuracy. The S-8471 IC operates at 0.95V to 6.5V voltage and -40°C to 85°C temperature range. This wireless power IC is lead- and halogen-free and is available in the SNT-6A package. The S-8471 IC is used in devices for wireless power and small-sized wireless charging system applications.

Features

Active H and active L selelectable ON/OFF pin control logic
Unavailable, pull-up, and pull-down selectable ON/OFF pin internal resistor connection

Over temperature protection function
Lead and halogen-free
Available in the SNT-6A package

Specifications

0.95V to 6.5V operating voltage range
4V to 5.5V overvoltage detection voltage range (selectable in 50mV step)
±2% overvoltage detection accuracy

400mW power dissipation (when mounted on board)
50μA maximum current consumption (during operation)
-40°C to 85°C operating temperature range

Applications

Devices for wireless power
Small-sized wireless charging system

ABLIC S-8471 Wireless Power Receiver Control IC

Features

Specifications

Applications

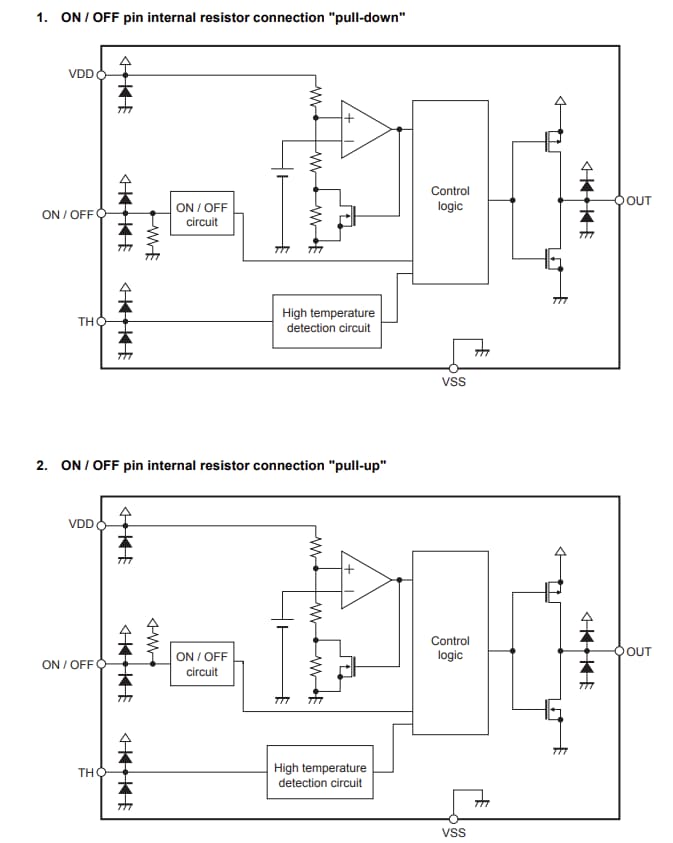

Block Diagrams

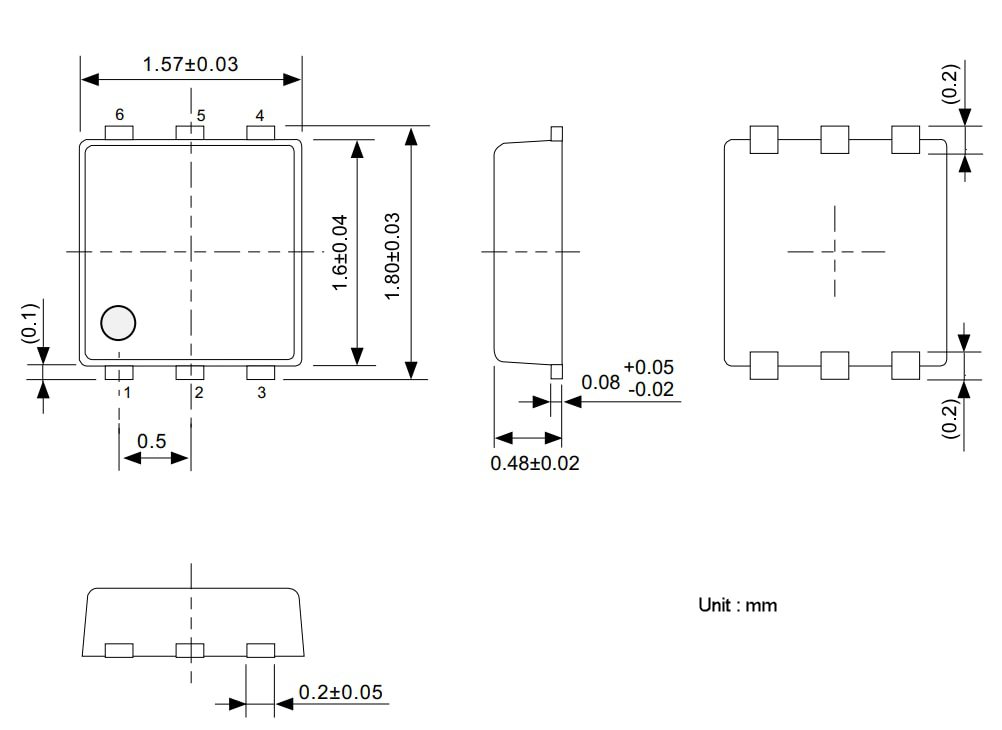

Mechanical Diagram
