ABLIC S-191Ex Window Voltage Detectors

ABLIC S-191Ex Window Voltage Detectors are developed using CMOS technology and feature high accuracy that detects undervoltage and overvoltage. These S-191Ex detectors fix detection voltage and release voltage with an accuracy up to ±2.0%. The voltage detectors consist of a SENSE pin that has a built-in reverse connection protection circuit that reduces current in the SENSE pin during reverse connection. These S-191Ex voltage detectors withstand 45V load dump and are AEC-Q100 qualified. The voltage detectors are lead (Sn 100%) and halogen-free. Typical applications include overvoltage detection of power supply for automotive electric components, automotive battery voltage detection, and for automotive use.

Features

Detection voltage:
- 4V to 10V (0.05V step) undervoltage detection voltage
- 16V to 18V (0.1V step) overvoltage detection voltage
Detection voltage accuracy:
- Up to ±2% under-voltage detection voltage
- Up to ±2% overvoltage detection voltage
±20% (CD = 3.3nF) release delay time accuracy
0.9μA current consumption
Nch open-drain output form
Built-in reverse connection protection circuit

3V to 36V operating voltage range
Operating temperature range:
- -40°C to 125°C for S191ExxxxA series
- -40°C to 105°C for S191ExxxxH series
- -40°C to 150°C for S191ExxxxS series
Withstand 45V load dump
AEC-Q100 qualified
Lead (Sn 100%) and halogen-free

Applications

Overvoltage detection of power supply for automotive electric component
Automotive battery voltage detection

For automotive use (car body, headlight, ITS, accessory, car navigation system, and car audio system)

Block Diagrams

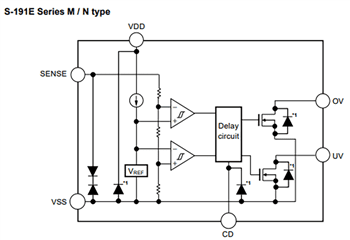

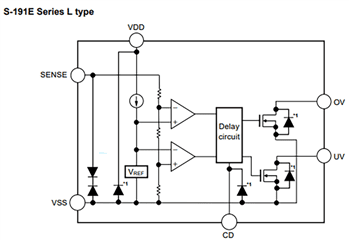

Block Diagram - ABLIC S-191Ex Window Voltage Detectors
