AAEON UP Squared 6000 Industrial Platform

AAEON UP Squared 6000 Industrial Platform includes Embedded Box and Single Board Computers (SBCs) based on the Intel® Atom® x6000E series and Intel Pentium® and Celeron® N and J series Processors. Optimized for automation, robotics, and industrial applications, the UP Squared 6000 Series offers a wide range of features such as Time-Sensitive Networking (TSN), Time-Coordinated Computing (TCC), in-band ECC, onboard TPM 2.0, and an additional carrier board to unlock PSE applications.

The AAEON UP Squared 6000 Series combines connectivity, a flexible I/O loadout, and powerful computing in a compact, power-efficient platform.

Features

  • Intel Celeron N6210 (up to 2.6Ghz) SoC
  • Dual-core
  • Intel® UHD Graphics
  • Optional VPU via M.2 2280
  • 2GB memory
  • 32GB eMMC/storage
  • UEFI bios
  • RTC
  • Wake on LAN (WoL)
  • Display
    • 1x HDMI 2.0B
    • 1x DisplayPort 1.2
  • Passive cooling (fanless)
  • Dimensions
    • SBC: 57mm x 147mm x 68mm
    • Box Computer: 207mm x 174mm x 121mm
  • I/O
    • 2x USB 3.2 Gen2 Type-A (STACK connector)
    • 1x UART via carrier board
    • 1x SATA HDD with power connector
    • 1x M.2 2280 M Key (supports NMVe SSD)
    • 1x M.2 2230 E Key
    • 1x M.2 3052 B Key
    • 40-pin GP-Bus
    • TPM2.0 (SPI SLB9670VQ20FW785 ) onboard micro-SIM slot on carrier board
    • 1x 1GbE RJ-45 (Intel I211-AT)
    • 1x 1/2.5GbE RJ-45 (Intel I225-V, support TSN)
    • Wi-Fi®, BLUETOOTH®, and LTE/4G/5G optional via M.2 2230

Applications

  • Industrial automation
  • Robotics
  • IoT and IIoT
  • AI and  Edge computing

Resources

  • Datasheets
    • Embedded Box Computer
    • Single Board Computer
  • User Manual
  • Quick Start Guide
  • Board Drawings

Videos

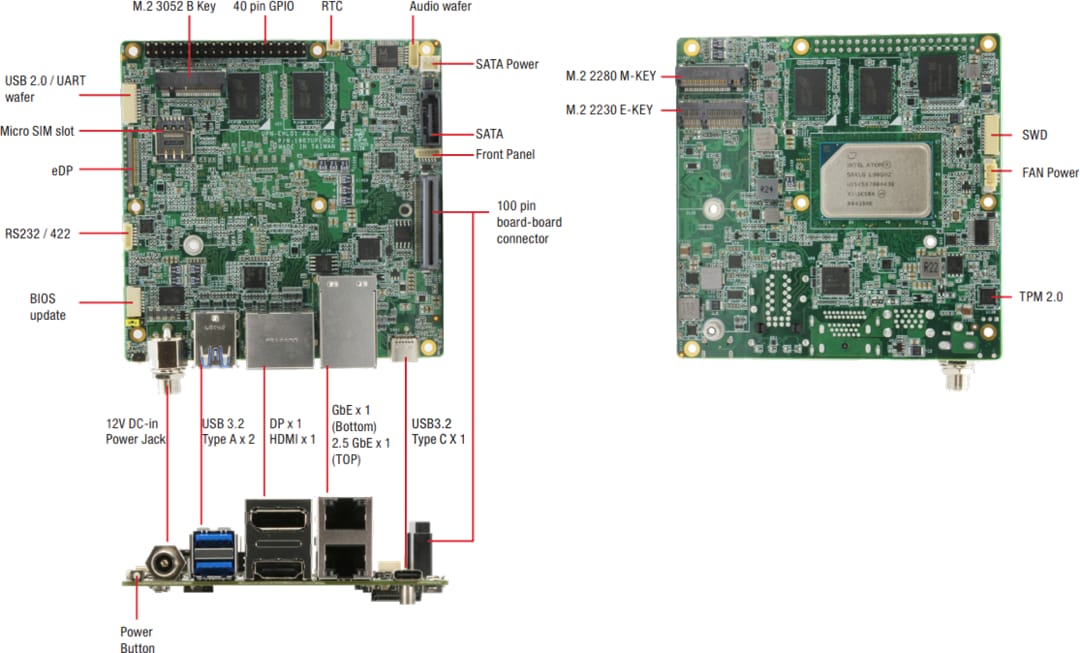

Board Layout

AAEON UP Squared 6000 Industrial Platform

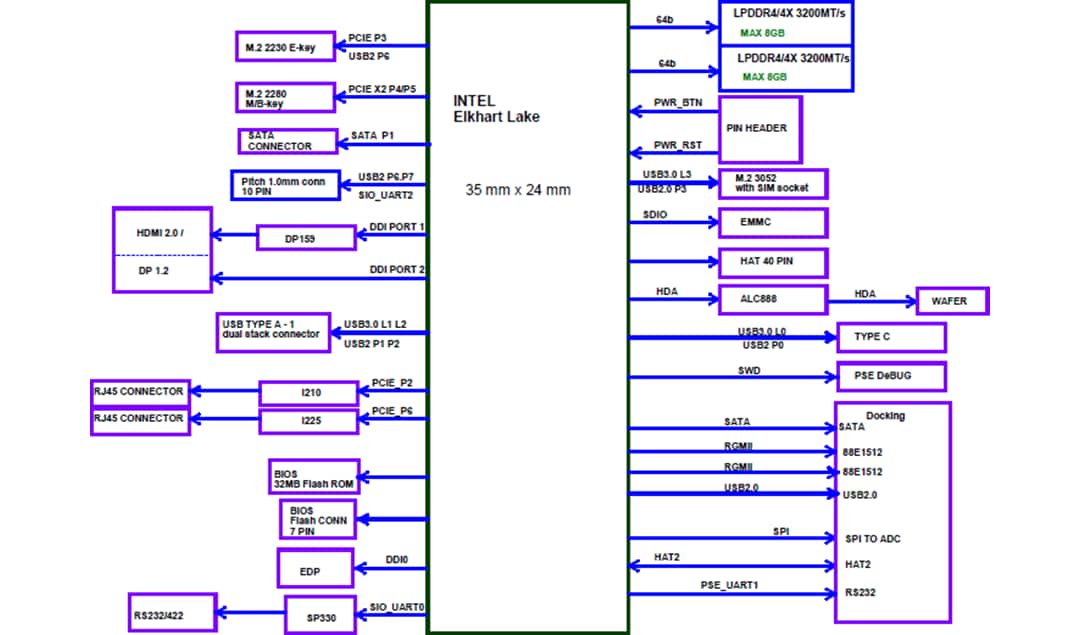

Block Diagram

Block Diagram - AAEON UP Squared 6000 Industrial Platform

AAEON UP Squared 6000 Industrial Platform
